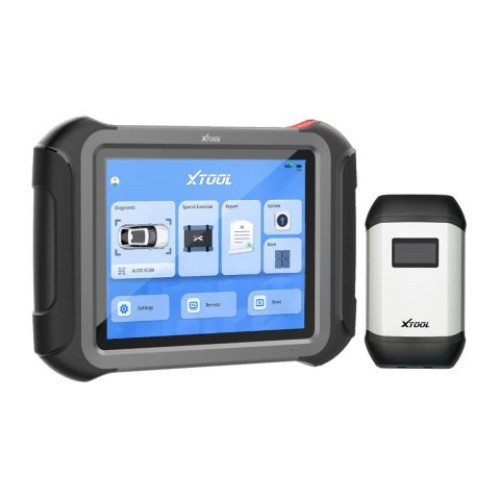

XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. XT90 also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the XT90 is a versatile and reliable tool for any automotive professional.

• 9.7-inch high-resolution, responsive touchscreen display, 4-core processor with 128 GB storage.
• High-performance CPU with Android 10 OS, and dual WIFI modules, bring you a smooth and hassle-free diagnostic experience.
• Extensive vehicle coverage for U.S., European, Asian and Chinese vehicle makes；take the lead in vehicle model and function coverage.
• Exceptional OE-Level system coverage for all electronic systems.
• Read/Erase DTC, live data, ECU information, bi-directional control, and special function capabilities.
• Topology Mapping provides a visual representation of the communication status of each system in the vehicle during automatic scanning.
• Advanced 42 relearn and reset services.
• Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz.
• Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.

1. Full-System Diagnostic

• Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus

2. Online & Offline Programming

• Support Online Programming for Volkswagen, Audi, BMW, Mercedes-Benz
  and programmable module installation for Ford and Mazda

3. Topology Mapping Supported

• Provides a visual representation of the communication status of each system in the vehicle during automatic scanning.

4. 40+ Maintenance Functions

• Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, etc.

• Operating System： Android 10
• Processor：4 Core 1.50GHz
• Memory：4G RAM, 128 ROM
• Display：9.7 inch capacitive touch screen with 1024×768P resolution
• Communication：WIFI
• Connectivity：WIFI 2.4/5 GHZ | USB 2.0
• Camera： Rear camera, 8.0 Megapixel, AF with Flashlight.
• Sensors： Gravity Accelerometer, Ambient Light Sensor
• Auto Input/Output： Microphone/ Speaker
• Working Voltage：3.6 to 4.2V
• Operating Temperature：-10 to 40℃
• Storage Temperature：-40 to 60℃
• Humidity：<90%
• Dimension (L×W×H)：313X218X30 mm
• Protocol compatibility： CANFD, DoIP

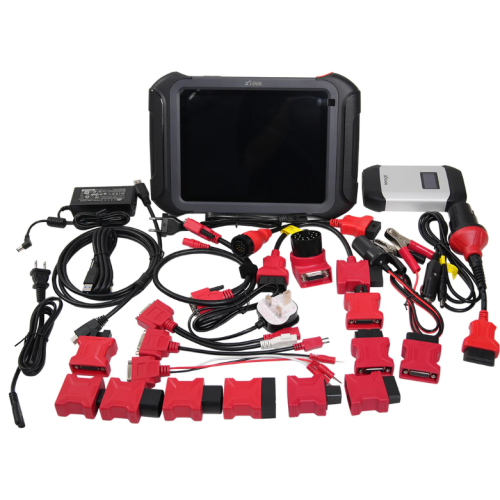

• Color Carton

• Packing List

• Tool Case

• Desiccant

• Quick Start Guide

• XV100 Endoscope (Separate packaging)

• Tablet

• VCI Box

• USB To Type_B Main Cable

• Charger for Tablet

• Power Cable US

• Power Cable EU

• Power Cable UK

• Battery Cable

• Cigar Lighter Cable

• USB Data Cable (Connect to PC)

• HONDA-3, TOYOTA-17, BMW-20, KIA-20, MAZDA-17R, NISSAN-14, GM/DAEWOO-12, SUZUKI-3, FIAT-3, HYUNDAI/KIA-10, AUDI-4, MITSUBISHI-12+16, UNIVERSAL-3, CITROEN-2, BENZ-38, BENZ-14, OBD II-16, DB15 Main Cable
