CUMMINS ONLY HD SCAN TOOL!

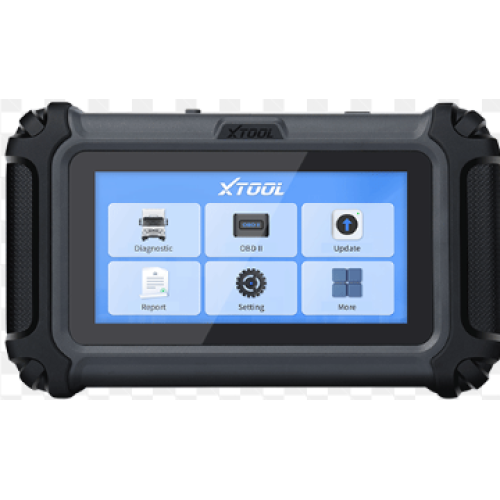

HDGURU is XTOOL's first entry-level heavy-duty vehicle diagnostic tool, featuring a streamlined Linux system and a 5.45-inch display, ideal for small fleet mechanics. It supports comprehensive Cummins ECU and HD OBD2 generic diagnostics, offering code scanning and clearing, live data monitoring, and detailed ECU information. With over 60 bi-directional tests, 35+ Cummins Dedicated functions, and advanced feature and parameter programming across 45+ applications, HDGURU delivers professional-grade diagnostics in a compact, easy-to-use device.

Description

• ● First entry-level heavy-duty diagnostic device from XTOOL

• ● Compact 5.45-inch screen with a user-friendly Linux system

• ● Supports diagnostics for a wide range of Cummins ECUs

• ● Includes HD OBD-II generic diagnostics for heavy-duty vehicles

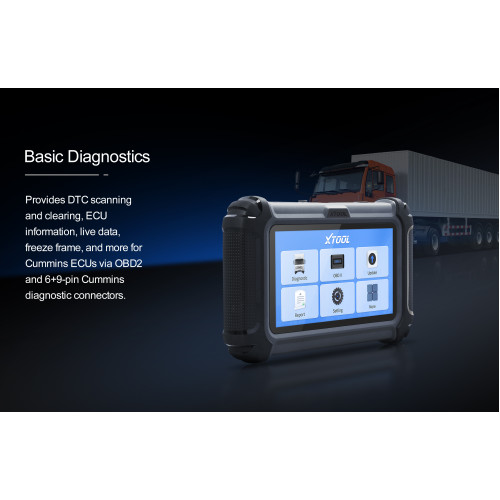

• ● Supports code scanning, clearing, and ECU information reading

• ● Displays real-time live data and freeze frame analysis

• ● Offers 60+ bi-directional tests for component control

• ● Built-in 35+ dedicated Cummins special functions

• ● Enables feature and parameter modification for 45+ functions

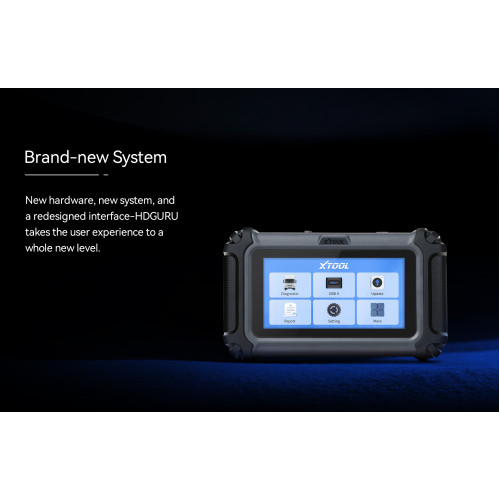

• ● Equipped with brand-new hardware, system, and user interface

• ● Connects via OBD-II and 6+9 Cummins diagnostic sockets

• ● Covers MIL status checks, PID reading, and other key HD functions

• ● Combines essential diagnostics with portability and value—perfect for small fleet mechanics and mobile technicians.

Parameters

• Operating System：Linux

• Communication Method：Wired

• Processor：Dual core This email address is being protected from spambots. You need JavaScript enabled to view it.

• Connectivity：Type-C

• Storage：32G

• Working Voltage：9-36V

• Display：5.45-inch, 1440×720px

• Battery：3150mAh, 3.6V

• Compatible Protocol：All common protocols

• Working Temperature：0 to 40℃

• Storage Temperature：-20 to 60℃

Accessories

• Color Carton
• Packing List
• Certificate of Quality
• Quick Start Guide

Cables & Adapters

• USB Type-C Main Cable
• Cummins 6+9 Adapter
• VGA to OBDII-16 Main Cable

Main Units

• Tablet
