3 year subscription and 2 year warranty!

***For J2534 support please order the Compass Master.

COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring a crystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals.), it enables OEM software connectivity for advanced diagnostics and programming. Covering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, with wireless charging and long battery life, you can work without limits. COMPASS — smart, powerful, and built for the future of automotive diagnostics! ***For J2534 support please order the Compass Master.  ****For 1 year of Identifix Direct Hit Professional software for $1,500 please order direct from XTool

Description

• ● Offers access to an online informatics database in partnership with Autodata

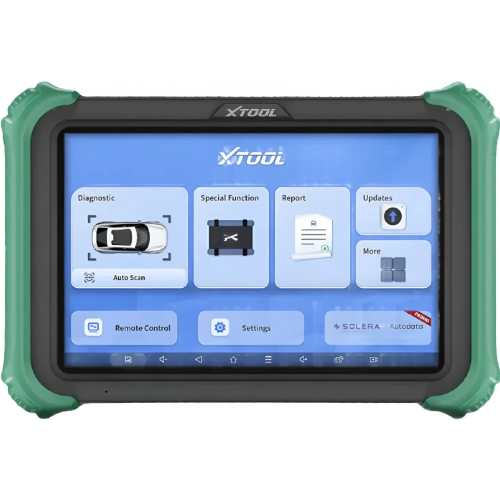

• ● Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system

• ● Powered by an octa-core processor (2.2GHz + 1.8GHz) and comes with 8GB RAM and 128GB of internal storage

• ● Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI

• ● Equipped with a 6400mAh, 7.2V high-capacity battery for extended working hours

• ● Includes an 8MP rear camera for capturing diagnostic or vehicle condition images

• ● Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication

• ● SAE J2534 compatibility is available for OEM software connectivity (Included by default on COMPASS MASTER; available as a paid option on COMPASS)

• ● Provides extensive vehicle coverage, including U.S., European, and Asian models — such as BUICK, DODGE, FORD, TESLA, HONDA, MAZDA, NISSAN, TOYOTA, AUDI, BMW, MERCEDES, VW, VOLVO, and more

• ● Features a topology module mapping function with color-coded system status displays (on supported vehicles)

• ● Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz

• ● Tesla Diagnostics Available: Perform comprehensive diagnostics on Tesla vehicles with full data access and a range of special functions

• ● Enables ADAS system calibrations for both cameras and radar-based systems

• ● Comes with OBDI connectors

• ● Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation

• ● Includes a 3-year software subscription for continuous updates and improvements

• ● Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW)

Parameters

• Operating System：Android 10.0

• VCI Communication：Wi-Fi/Wired

• Processor：2.2GHz+1.8GHz Octa-core Processor

• Ports：USB （Type-C）

• Memory：128G

• Display：10.1-inch, 1920×1200

• Battery：6400 mAh, 7.2V

• Camera：8MP rear

• Working Temperature：0 to 40℃

• Compatible Protocol：UDS, KWP2000, K_Line/L_Line, CAN/CANFD, DoIP, SAE J1939, SAE J1708, SAE J1587, SAE J1850, etc.

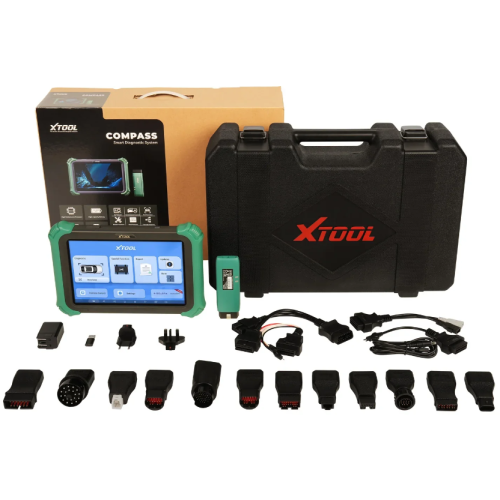

Accessories

• Color Carton
• Packing List
• Certificate of Quality
• Tool Case
• Quick Guide

Main Units

• Tablet
• VCI Box
• Power Supply (PD)
• Charging Adapter (EU)
• Charging Adapter (UK)
• PD-12V Power Cable (Type-C to DC)
• Data Cable (Type-C To Type-C)
• Adapter (Type-C to Type-A)

Test Connectors

• CITROEN-2
• VW/AUDI-2+2
• MITSUBISHI/HYUNDAI-12+16
• UNIVERSAL-3
• BENZ-14
• BENZ-38
• BMW-20
• GM/DAEWOO-12
• HONDA-3
• TOYOTA-17
• NISSAN-14
• KIA-20
• HYUNDAI/KIA-10
• MAZDA-17
• SUZUKI-3
• FIAT-3
